RSJ Series Fuel Injection Screw Air Compressor Air Inlet Valve
![rsj_120_1](http://anka.parts/wp-content/uploads/slider/cache/0ccea8e908e1fc914d26f9179e307ed6/rsj_120_1.webp)
![rsj_160_1](http://anka.parts/wp-content/uploads/slider/cache/a71cafb4d453b8d48133984b76bee8c7/rsj_160_1.webp)

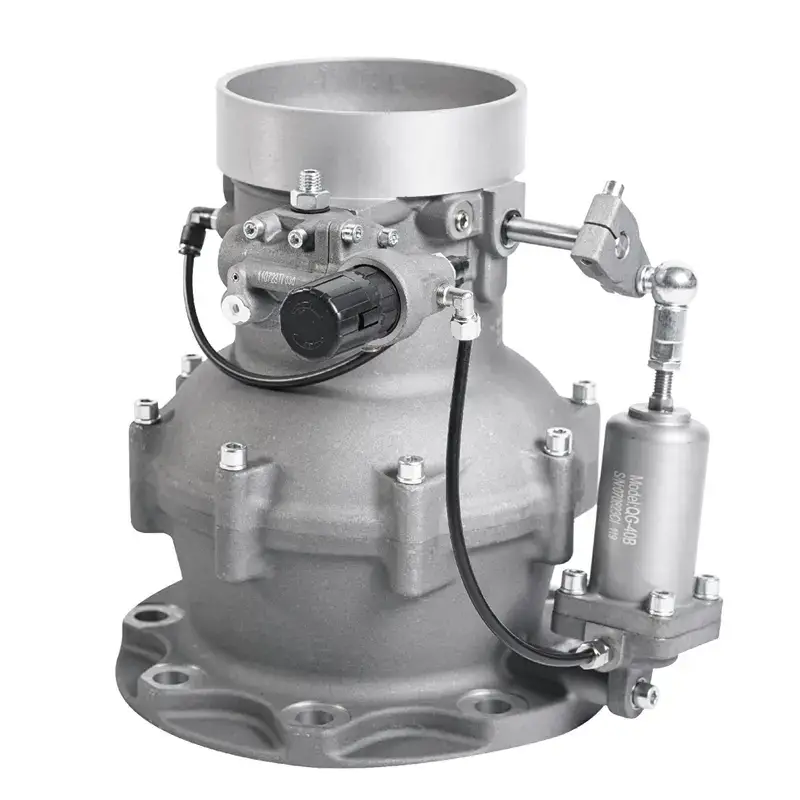

rsj_120_1

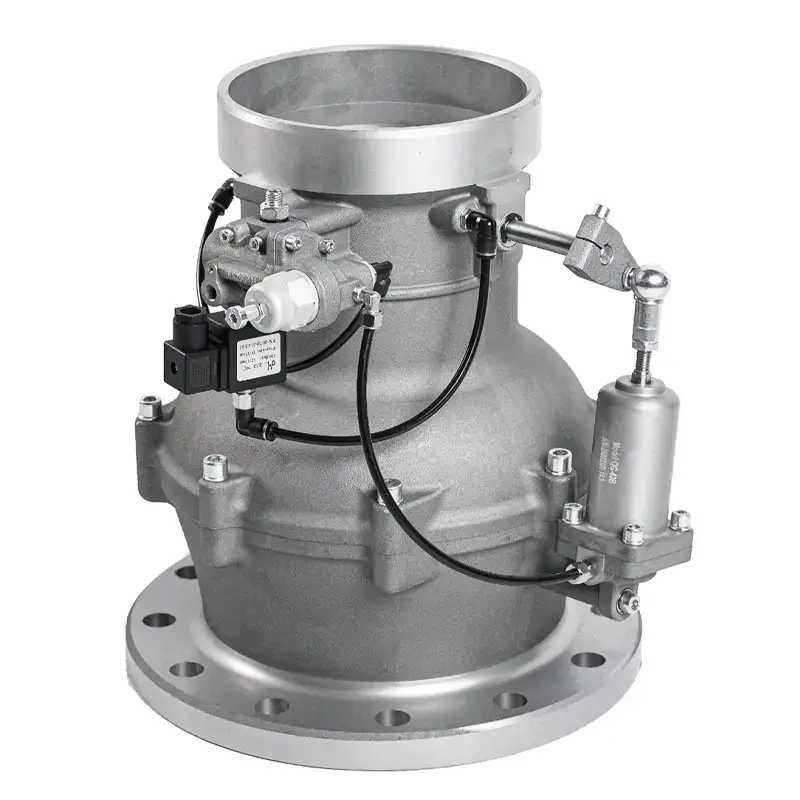

rsj_160_1
![rsj_120_1](https://anka.parts/wp-content/uploads/slider/cache/0eded5a58e75275bd3760eae5d737bb1/rsj_120_1.webp)
![rsj_160_1](https://anka.parts/wp-content/uploads/slider/cache/dd0abef3583b470881ced4752bfe82fe/rsj_160_1.webp)
Advantage
Features:
Normally Closed Intake Valve: Controlled by pressure input, the intake valve opens when pressure is applied.
Piston–type Check Valve for All Series: This design prevents oil injection during emergency shutdown situations.
Optional Unloading and Replenishing Function: Effectively eliminates cavitation noise generated by the main engine.
Integrated Functions: The intake valve integrates a relief valve, a replenishing valve, and a reverse proportional valve. Standard accessories include a solenoid valve and a filter.
Technic Data:
Technical Parameters: | ||
Model prefix | RSJ-120 | RSJ-160 |
Diameter(mm) | 120 | 160 |
Flow (ms/min) | 16~25 | 25~45 |
Maximum working pressure (bar) | 15 | |
Working medium temperature (C) | -20~120 | |
Working environment temperature (°C) | -20~60 | |
Non-return function | ● | ● |
ON/OFF control | ● | ● |
Stepless flow control | ○ | ○ |
Uninstall the air supply function | ○ | ○ |
Solenoid valve power supply | AC220V 50Hz (other voltage are optional) | |
Solenoid valve certification | CE | |
Air intake direction | vertical/horizontal | vertical/horizontal |
●Standard ○Optional |
![aiv_intake_valve_drawing](https://anka.parts/wp-content/uploads/2022/04/aiv_intake_valve_drawing-1024x637.webp)
