Red Star AIV/JIV Intake Valve
Advantage
Features:
- High Quality and Durability: Red star intake valves are recognized for their exceptional quality and durability. They are engineered to withstand the demanding conditions of industrial environments, ensuring long-term reliability and performance.
- Advanced Technology: Red star utilizes cutting-edge technology in the manufacturing of their compressor parts. This includes the use of high-grade materials and precision engineering techniques that enhance the efficiency and effectiveness of their products.
- Excellent Customer Support: Red star is also known for its excellent customer service. The brand provides comprehensive support and assistance, from product selection and installation to maintenance and troubleshooting, ensuring customer satisfaction and optimal use of their products.
Model Description:
Technic Data:
| Technical Parameters: | |||||||
| Model prefix | AIV-25 | AIV-40 | AIV-50 | AIV-65 | AIV-85 | AIV-100 | AIV-120 |
| / | JIV-40 | JIV-50 | JIV-65 | JIV-85 | / | / | |
| Diameter(mm) | 25 | 40 | 50 | 65 | 88 | 100 | 120 |
| Flow (m³/min) | 0.5~1.5 | 1~2.5 | 2.5~4.5 | 4~7 | 7~14 | 10~16 | 16~25 |
| Maximum working pressure (bar) | |||||||
| Working medium temperature (°C) | -20~120 | ||||||
| Working environment temperature (°C) | -20~60 | ||||||
| Non-return function | ● | ● | ● | ● | ● | ● | ● |
| ON/OFF control | ● | ● | ● | ● | ● | ● | ● |
| Stepless flow control | ─── | ○ | ○ | ○ | ○ | ● | ● |
| Uninstall the air supply function | ○ | ○ | ● | ● | ● | ● | ○ |
| Solenoid valve power supply | AC220V50Hz (other power supplies are optional) | ||||||
| Solenoid valve certification | CE/UL | ||||||
| Air intake direction | vertical | vertical | vertical | vertical | vertical | vertical | vertical |
| ●Standard ○Optional ─None | |||||||
How to select the right Red Star AIV / JIV intake valve

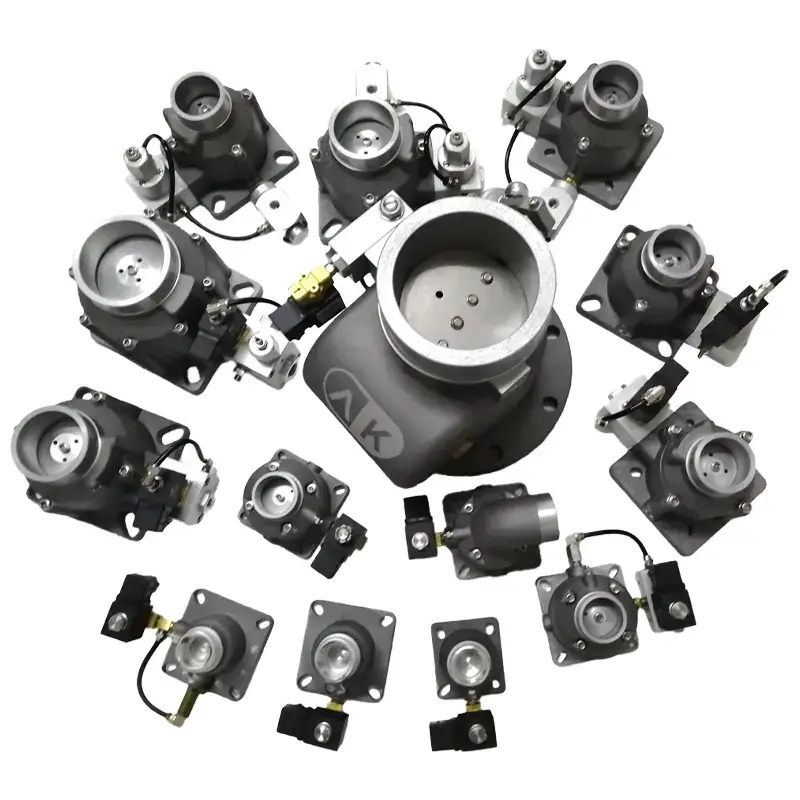

These are the Red Star intake valves we keep in stock, in the two naming families the Red Star catalogue actually uses. Choose by bore and flow, then by the options your controller needs.

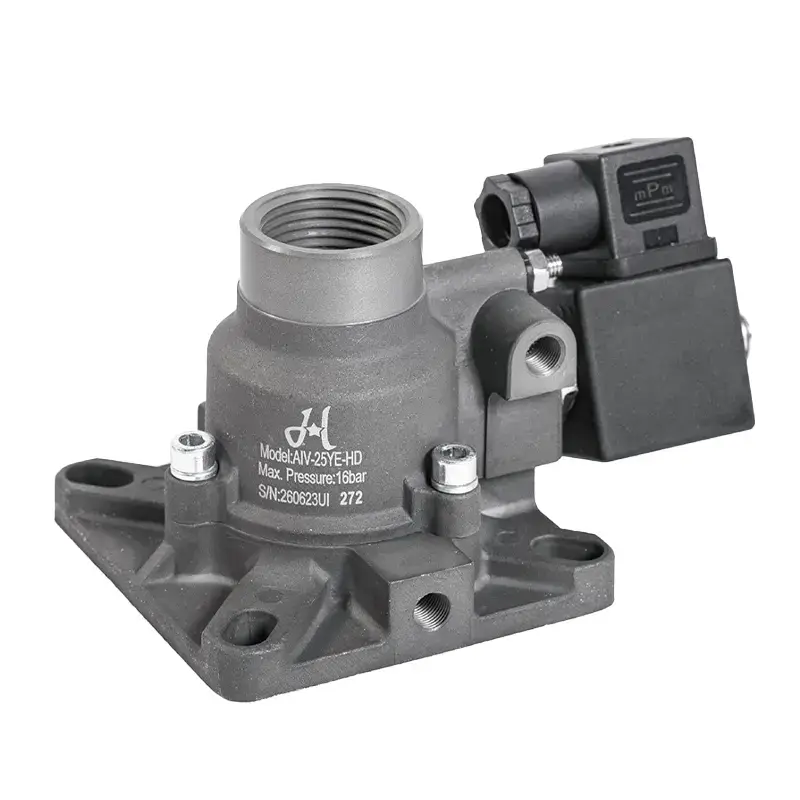

- AIV series — AIV-25 (0.5–1.5 m³/min), AIV-40 (1–2.5), AIV-50 (2.5–4.5), AIV-65 (4–7), AIV-85 (7–14), AIV-100 (10–16), AIV-120 (16–25).

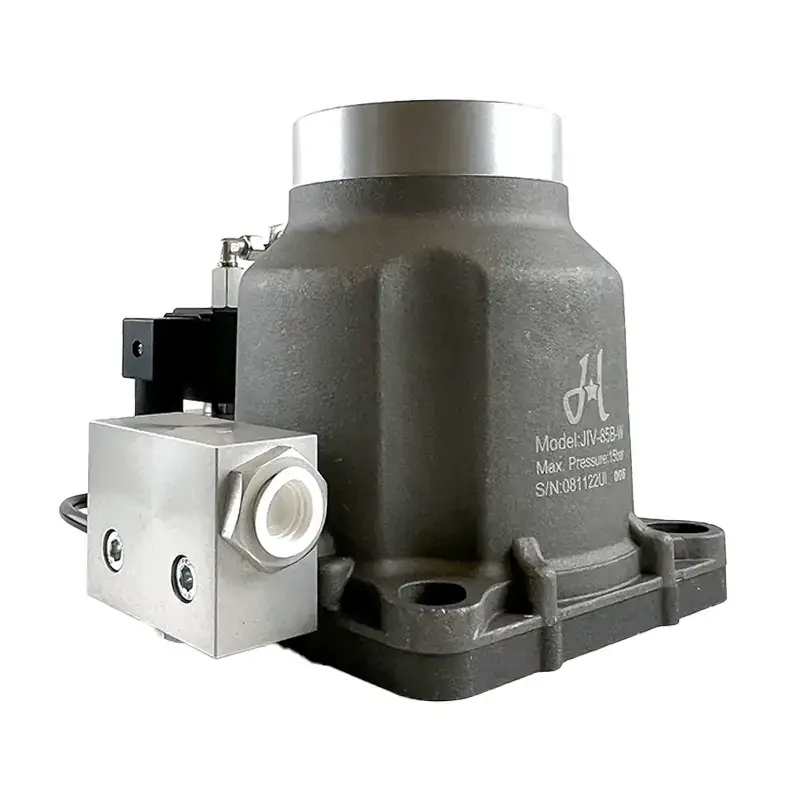

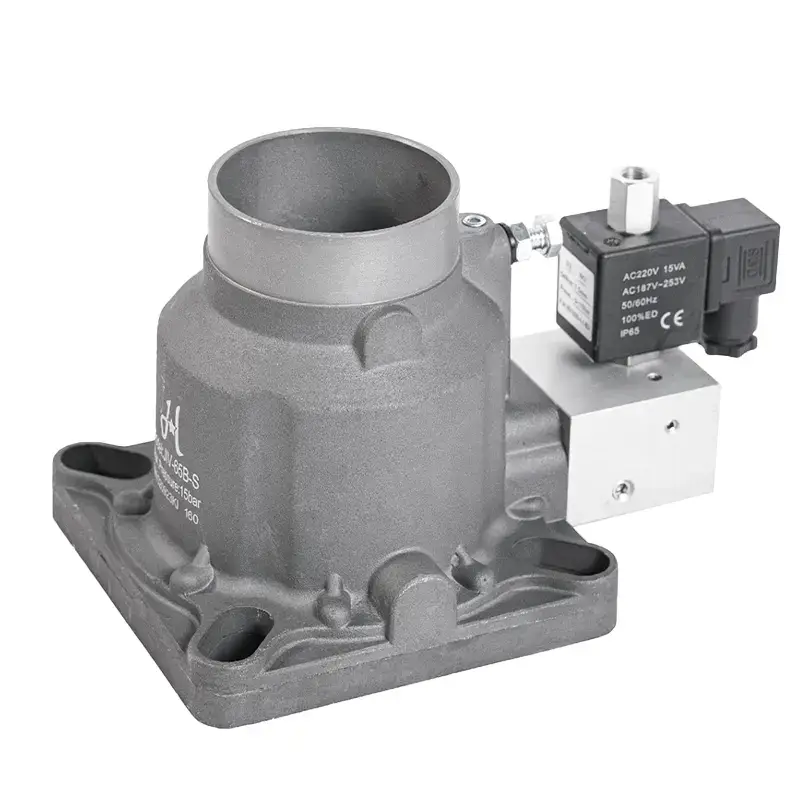

- JIV series — JIV-40, JIV-50, JIV-65, JIV-85. Same bores, different body and control arrangement; when a customer asks for JIV by name, quote JIV — do not substitute an AIV.
- Rating — maximum working pressure 16 bar, medium temperature −20 to 120 °C, ambient −20 to 60 °C.
- Options — non-return function and ON/OFF control are standard on the whole range; stepless flow control is optional. Solenoid coil voltage is specified at order.
Installation and maintenance
- Check the flange bolt pattern and the O-ring groove against the old valve before fitting — Red Star bodies changed over the years and two valves with the same bore do not always share a flange.
- The check element must close on shutdown. Test by stopping the machine under load and looking for oil at the filter housing.
- Keep the pilot air dry: fit the filter on the control line, otherwise the solenoid sticks in cold weather and the valve stays partly open.
- Do not re-use the O-ring. A hardened O-ring that looks fine will leak as soon as the machine reaches working temperature.
Red star aiv / jiv intake valve FAQ
Is JIV the same as AIV?
No. They are two families in the Red Star catalogue with different bodies and control arrangements, although the bores overlap. If your machine was built with a JIV, fit a JIV — an AIV of the same bore will not necessarily match the flange or the pilot port.
Which model for a 22 kW machine?
Look at the flow at your working pressure rather than the motor rating: AIV-40 covers 1–2.5 m³/min and AIV-50 covers 2.5–4.5 m³/min. A 22 kW machine at 8 bar usually sits on AIV-50.
Do you supply the solenoid with the valve?
Yes — the standard accessory set includes the solenoid valve and the filter. Tell us the coil voltage you need (AC220 V 50 Hz is the default) and we set the valve up for that.
