ANKA RH SERIES INTAVE VALVE
![rh_intake_valve_40](http://anka.parts/wp-content/uploads/slider/cache/e19ce1af17115c691e7dfd2bfe454342/rh_intake_valve_40.webp)
![rh_intake_valve_50](http://anka.parts/wp-content/uploads/slider/cache/44532c9bf137261de3f8cba1f57c9320/rh_intake_valve_50.webp)
![rh_intake_valve_65](http://anka.parts/wp-content/uploads/slider/cache/833495e15e7c3092b2a17739bfd58e6a/rh_intake_valve_65.webp)
![rh_intake_valve_90](http://anka.parts/wp-content/uploads/slider/cache/80686897652d60a6881738d701ab78ac/rh_intake_valve_90.webp)

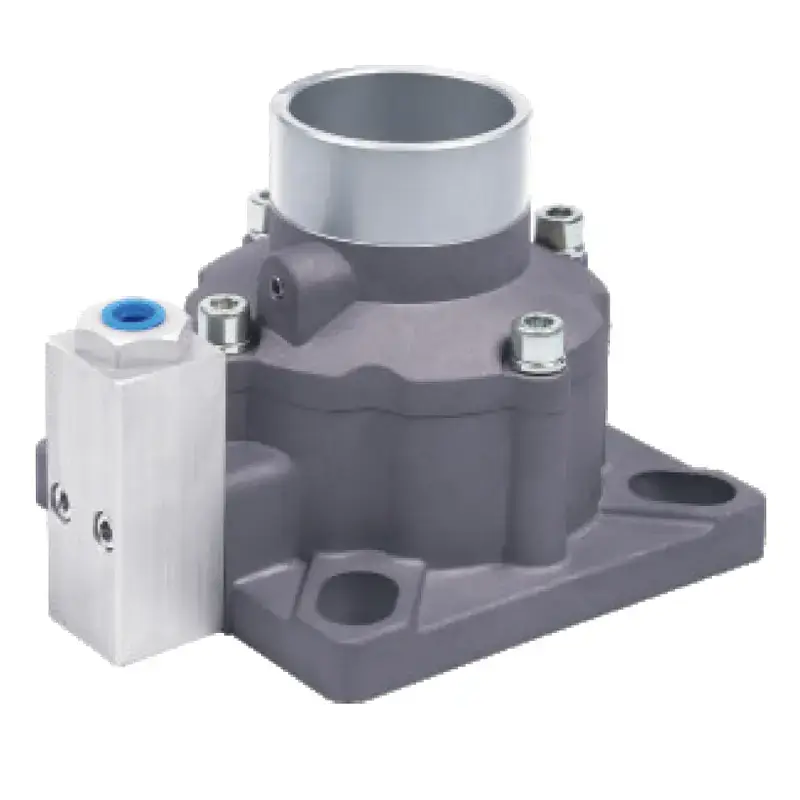

rh_intake_valve_40

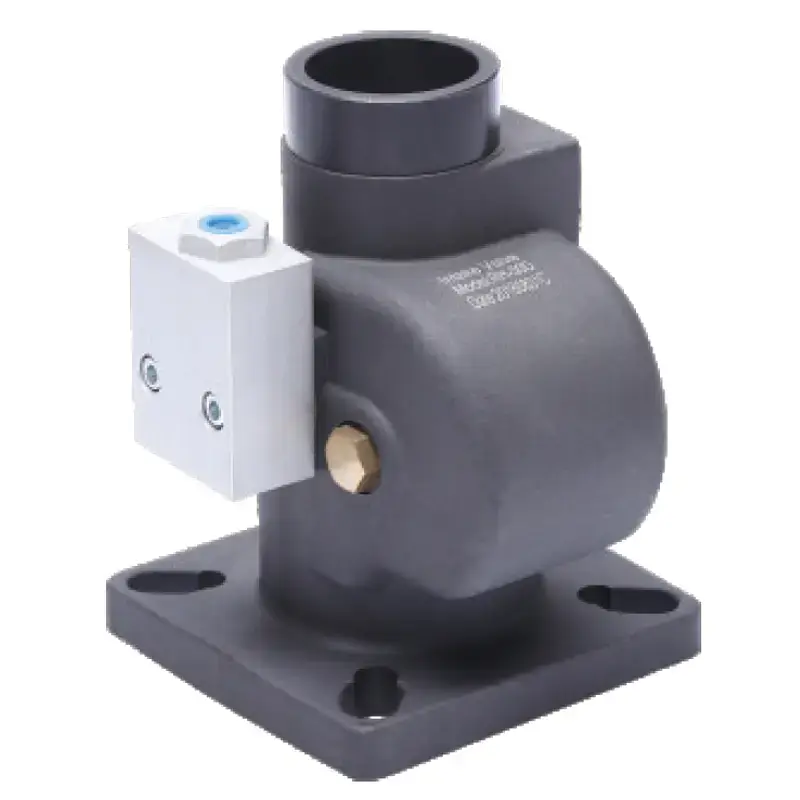

rh_intake_valve_50

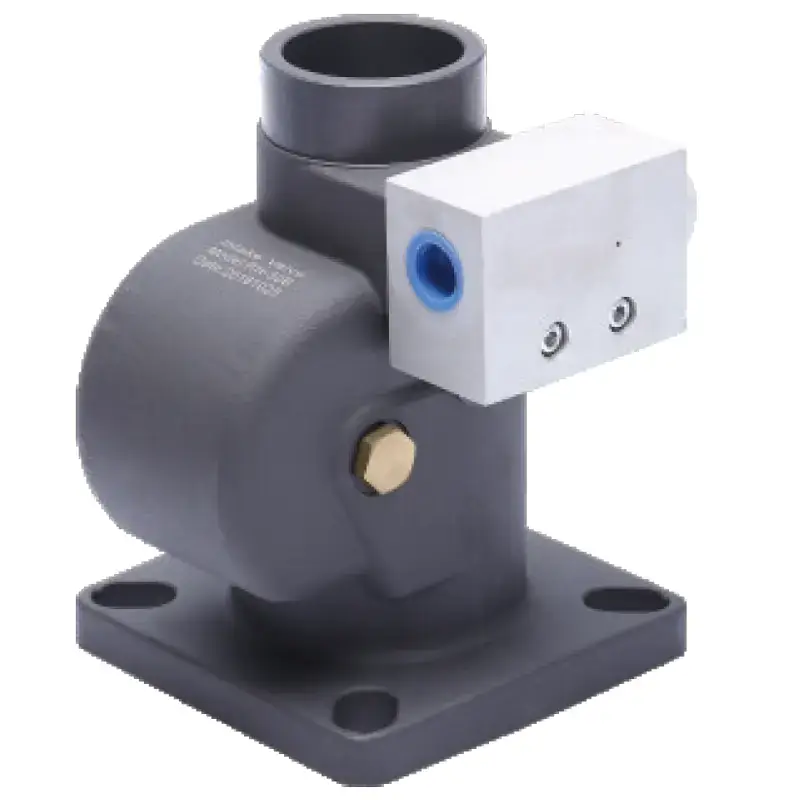

rh_intake_valve_65

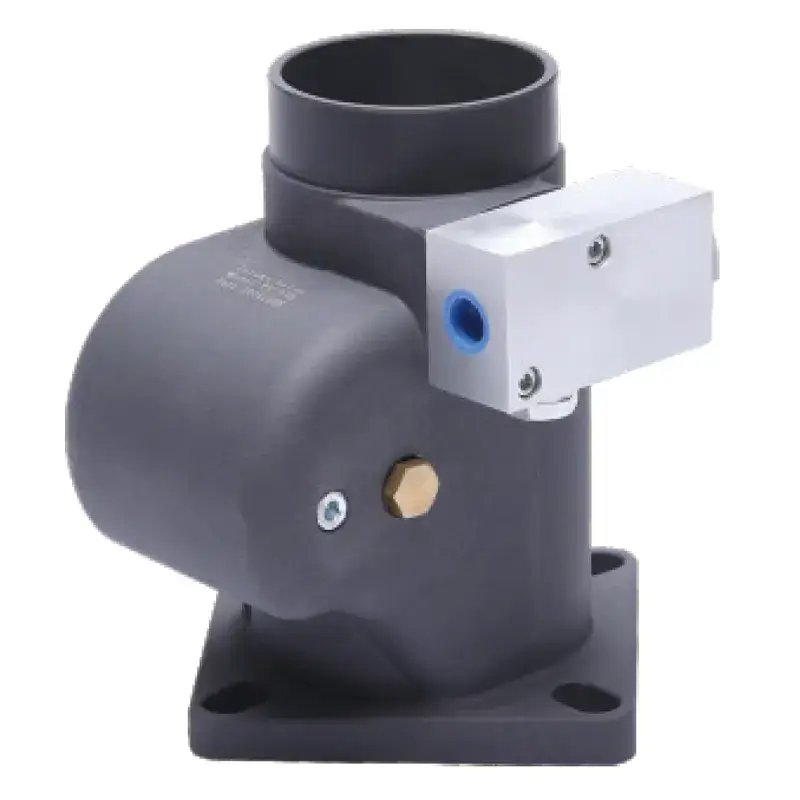

rh_intake_valve_90
![rh_intake_valve_40](https://anka.parts/wp-content/uploads/slider/cache/ab8b076c9772b651f5e146db774e0239/rh_intake_valve_40.webp)
![rh_intake_valve_50](https://anka.parts/wp-content/uploads/slider/cache/230171dee4d5e44b6d49b04fafa03a55/rh_intake_valve_50.webp)
![rh_intake_valve_65](https://anka.parts/wp-content/uploads/slider/cache/522d6083b56f5f366fd939ab9aaddc50/rh_intake_valve_65.webp)
![rh_intake_valve_90](https://anka.parts/wp-content/uploads/slider/cache/0f5d1226f7eafbef4e92f687790418ca/rh_intake_valve_90.webp)
Advantage
Features:
- Application: Variable Speed Oil-injected Screw Compressor
- Release Mode: Controlled by Airend Suction Port Pressure at Shutdown or by Solenoid Valve.
- Intake Valve Has Hammer Type Check Structure of Low Pressure Loss to Prevent Oil Injection Through the Compressor at Shutdown.
- Unique Discharge Flow Channel Direction Leads Airflow Not to Wash Check Valve Plate During Discharging.
- Integration of Discharge Valve, and Electric Control Solenoid Valve Makes It Install Easily and Quickly.
Model Description:
![RH_intake_valve_description](https://anka.parts/wp-content/uploads/2022/04/RH_description.webp)
Technic Data:
Model | Diameter | Flow(m³/min) | Maximum Working Pressure | Working Medium Temperature | Working Temperature |
RH-40H | 40 | 2-4.5 | 16 | -20-120 | -20-60 |
RH-50B | 50 | 3-6 | 16 | -20-120 | -20-60 |
RH-50D | 50 | 3-6 | 16 | -20-120 | -20-60 |
RH-65B | 65 | 5-10 | 16 | -20-120 | -20-60 |
RH-65D | 65 | 5-10 | 16 | -20-120 | -20-60 |
RH-90B | 90 | 9-19 | 16 | -20-120 | -20-60 |
RH-90D | 50 | 9-19 | 16 | -20-120 | -20-60 |
![rh_intake_valve_drawing](https://anka.parts/wp-content/uploads/2022/04/rh_intake_valve_drawing-1024x514.webp)
Model | A | B | C | D | E | F | Interface Size | O-Ring Size | G |
RH-40H | 125*125 | 86 | ø109 | ø132 | 108 | 48 | RP1/4 | 82*2.65 | 4-ø13 |
RH-50B | 132*132 | 100 | ø135 | ø150 | 182 | 62 | RP1/2 RP1/8 | 110*3.5 | 4-ø17 |
RH-50D | 132*132 | 100 | ø135 | ø150 | 182 | 62 | RP1/4 | 110*3.5 | 4-ø17 |
RH-65B | 150*150 | 110 | ø143 | ø170 | 151 | 78 | RP1/2 RP1/8 | 118*3.5 | 4-ø17 |
RH-65D | 150*150 | 110 | ø143 | ø170 | 151 | 78 | RP1/4 | 118*3.5 | 4-ø17 |
RH-90B | 155*155 | 120 | ø160 | ø180 | 226 | 100 | RP1/2 RP1/8 | 132*3.55 | 4-ø17 |
RH-90D | 155*155 | 120 | ø160 | ø180 | 226 | 100 | RP1/4 | 132*3.55 | 4-ø17 |
